Power and Performance Redefined

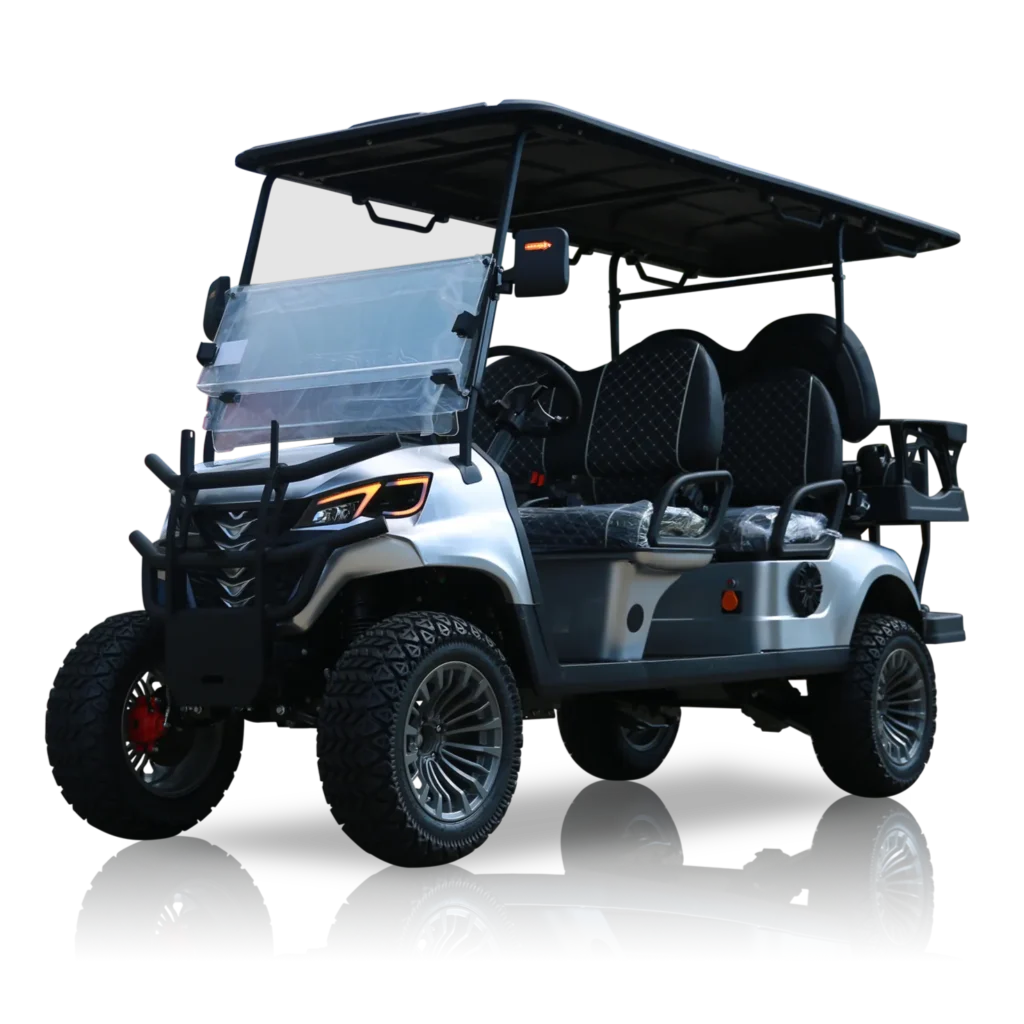

6(4+2) Seats Lifted Electric Golf Cart

Experience superior performance and style with our lifted electric golf carts. Designed for power, durability, and customization, they offer the perfect solution for your recreational and business needs.



6 (4+2) Seats Neighborhood Golf Cart

Lifted Model ZSA4+2

6(4+2) Seats Lifted Golf Cart

  • Range: 50-70 miles
  • Max Speed: 25 mph
  • 5KW AC Motor
  • Controller 350A
  • 51.2V 150Ah Lithium
  • Charging Time: <8 hours
  • 10-inche LCD display
  • 14-inche Aluminum Alloy Rim
  • Foldable Windshield(DOT)
  • All-terrain Tire(DOT)
  • MacPherson Independent Front Suspension
  • Integral rear axle, Speed ratio 16:1
  • Four-wheel Hydraulic Brakes
Contact Now
  • Basic Information
  • Overall dimensions: 3780mm*1350mm*2080mm (147x53x82 in)
  • Net weight: ≦750kg (1653 lbs)
  • Passenger capacity: 6
  • Front/rear track: 965mm/968mm (37.9/38 in)
  • Front and rear wheelbase: 2485mm (98 in)
  • Minimum ground clearance: 170mm (6.7 in)
  • Minimum turning radius: 3.0m (118 in)
  • Climbing ability: 25%
  • Range: 50-70 mile (flat road)
  • Braking distance: <3.5m (138 in)
  • Power System
  • Motor: LUCKY 48V AC motor
  • Power: 5KW
  • Electrical system: 48V
  • Battery: Extreme 51.2V 150Ah lithium-ion battery
  • Charger: 48V/25A
  • Charging time <8 hours (discharge rate is 80%)
  • Controller: FJ-48V350A
  • DC: Inbo non-isolated DC-DC 48V/12V-300W
  • Suspension and Brake System
  • Front suspension: McPherson independent front suspension + coil spring + damping hydraulic shock absorber.
  • Rear suspension: integral rear axle, speed ratio 16:1 coil spring shock absorber + damping hydraulic shock absorber + rear stabilizer bar
  • Brake system: 220 large size hydraulic drum brake rear axle: four-wheel hydraulic brake, front disc rear drum + pedal parking
  • Steering system: two-way rack and pinion steering system, automatic clearance compensation function
  • Frame: Q235 high-strength sheet metal profile welding, electrophoresis + anti-rust spray
Contact Now
  • Features
  • 10-inch large screen IP66 waterproof advanced multimedia combination LCD screen with vehicle status information;
  • Q235 metal profile cutting and welding anti-collision bumper + prey basket
  • PU leather + special sponge modeling sofa (black pure color advanced imported PU)
  • 14-inch aluminum alloy wheel + 14-inch off-road tire (DOT certification)
  • Special acrylic folding glass for golf carts (DOT certification)
  • Configarations
  • Roof: matte black square tube frame + PP material injection molding one-piece ceiling (standard)
  • Front windshield: DOT certified folding glass (standard), DOT certified tempered glass + wiper (optional)
  • Seat belt: DOT certified two-point seat belt (standard)，Three points seat belt(optional))
  • Body: The whole vehicle is injection molded with PP material, aging-resistant and non-deformed (standard)
  • Floor: galvanized sheet + black rubber carpet (standard)
  • Instrument panel: injection molding instrument panel, ignition switch, direction selection switch, high beam switch, horn headlight combination switch, cup holder; USB + Type-c charging / dual USB charging (standard)
  • Display: Polycloud IP66 waterproof 10-inch LCD multimedia combination instrument, with vehicle fault identification and detection function (standard)
  • Audio system: None (standard), HASDA 6.5-inch IP66 waterproof yacht-specific top audio (optional)
  • Seat: PU leather + special sponge-shaped sofa (black solid color high-grade imported PU) (standard) , upgraded color separation and silk screen printing (optional)
  • Reverse seats can be flipped, including storage box: (optional) Wheels: 14-inc
  • Wheels: 14-inch aluminum wheels with a wheel diameter of 584.2mm (standard) Others: 14-inch aluminum wheels w
  • Tires: DOT certified; all-terrain 23*10.5-14 (4 Ply Rated)/tire (standard) Others: DOT certified; all-terrain 23*10.5-14 (6 Ply Rated)/tire (optional)
  • Rearview mirrors: one manually adjustable and foldable exterior mirror on each side (standard), one manually adjustable, foldable exterior mirror on each side with turn signal (optional)
  • Lights and warning signals: LED front combination lights (low beam, high beam, turn signal, daytime running light) LED rear taillights (brake lights, driving lights, turn signal); snail horn, reversing buzzer (standard) "
  • Color and pattern: Standard colors (Life Green, Pearl White, Sapphire Blue, Cherry Red, Metallic Black, Metallic Silver, Champagne Gold, Wine Red, Haze Blue)
